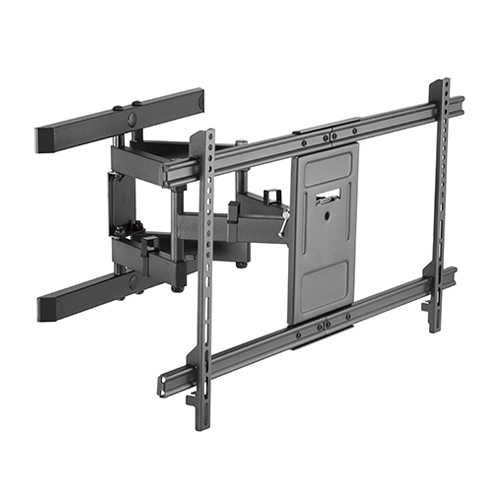

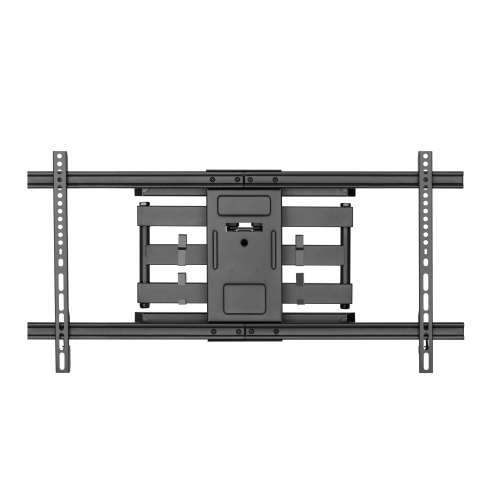

Solid Full-Motion TV Wall Mount

Product Category:

Full-motion TV Wall Mount

Rank:

Standard

Material:

Steel,Plastic,ABS

Metal Sheet Thickness:

Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=2.5mm pickling sheet,Wall Plate THK=3mm cold-rolled sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.098" pickling sheet,Wall Plate THK=0.12" cold-rolled sheet)

Pipe Size:

40x20x1.2mm Square Steel Tube,40x25x2mm Square Steel Tube (1.6"x0.79"x0.047" Square Steel Tube,1.6"x0.98"x0.079" Square Steel Tube)

Surface Finish:

Powder Coating

Color:

Fine Texture Black

Color(accessory):

Fine Texture Black

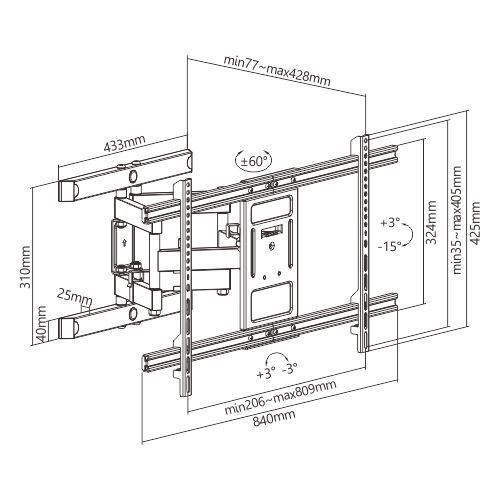

Dimensions:

428x840x425mm (16.9"x33.1"x16.7")

Fit Screen Size:

43"-90"

Fit Curved TV:

Yes

Mounting Hole Pattern:

VESA & Universal

VESA Compatible:

300x200,400x200,300x300,400x300,400x400,600x400,800x400

Max. Mounting Hole:

800x400

Weight Capacity:

60kg (132lbs)

Strength Tested:

4 Times Approved

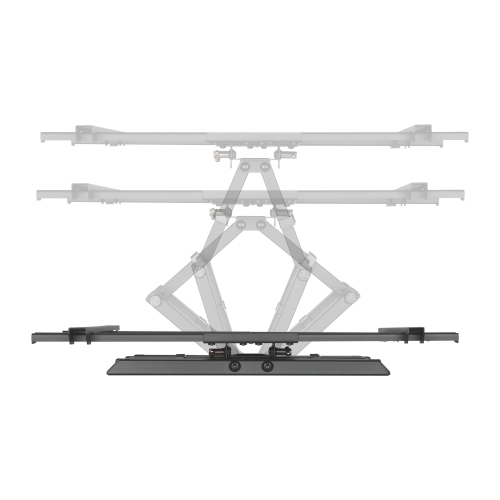

Profile:

77~428mm (3"~16.9")

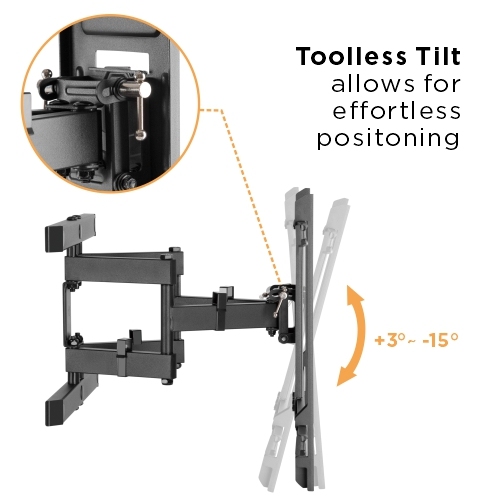

Tilt Range:

+3°~-15°

Swivel Range:

+60°~-60°

Screen Level:

+3°~-3°

Screen Freely Tilting:

No

Installation:

Solid Wall,Double Stud(406mm)

Panel Type:

Detachable Panel

Wall Plate Type:

Fixed Wall Plate

AV Component Shelf:

No

Direction Indicator:

Yes

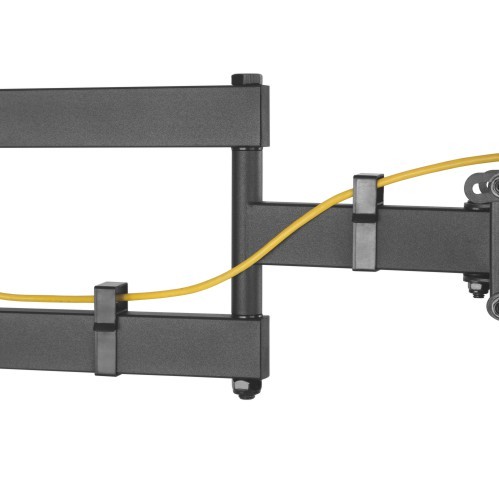

Cable Management:

Yes

Anti-theft:

No

Power Supply:

No

Bubble Level:

No

Accessory Kit Package:

Compartment Polybag
