Features:
* Standard rack mounted design(1U) with delicate SMT technology.
* Support mp3 / TUNER / Bluetooth remote control function, the remote control distance can reach 8 meters.
* With USB interface and SD card interface, integrated MP3 playback module, with automatic priority playback audio function, digital screen can display the currently playing track of USB.
* Integrated Bluetooth module, support music play via Bluetooth mobile phone.
* Integrated TUNER module with FM radio antenna port.
* 1 EMC inputs, 2 AUX inputs, 4 MIC inputs.
*. Channel priority function EMC> MIC1> MIC2, MIC3, AUX1, AUX2.
* Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control.
* Supports 5 zones outputs, each partition has a separate key and level indication, and the entire area can be set with one key.
* The machine is equipped with level indication, overload and protection indicators.
* The device has good self-protection such as short circuit, overload, and overheating.
*2 kinds of output methods: 100V, 4-16Ω.
*The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy energy-saving and ultra-stable design of Class D digital power amplifiers.
*Wide range voltage power supply: 220V-240V can work normally.
Specifications:
Model | TI-240DTB |
Output | 4-16Ω, 100V |
Output Power | 240W |
Input Sensitivity & Impedance | MIC1, 2, 3, 4 Input:5mV/600Ω Unbalanced 6.3 connector |
AUX1, 2 Input: 350mV/10KΩ Unbalanced RCA connector | |
EMC Input: 775mV/10KΩ Unbalanced 6.3 connector | |
Output Sensitivity & Soure Impedance | MIX OUT:1000mV/470Ω Unbalanced RCA connector |
Tone | Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz |
Frequency Response | 50~16KHz(+1dB,-3dB) |
S/N Rate | MIC1, 2, 3: 66dB; AUX1, 2: 80dB |
THD | Less than 0.5%(at 1KHz,1/3 Rated Power) |
Mute Function | EMC>MIC1>MIC2, MIC3, AUX1, AUX2 |
Capacity | 5 Zones |
Channel Crosstalk | ≥50dB |
Heat Dissipation | The fan starts work when powered on. Winds flank in and out |
Protection | Short circuit, overload and overheat |
Power Supply | ~220-240V /50Hz |
Power Consumption | 300W |
Dimension | 484×260×44mm |
Weight | 3.8Kg |

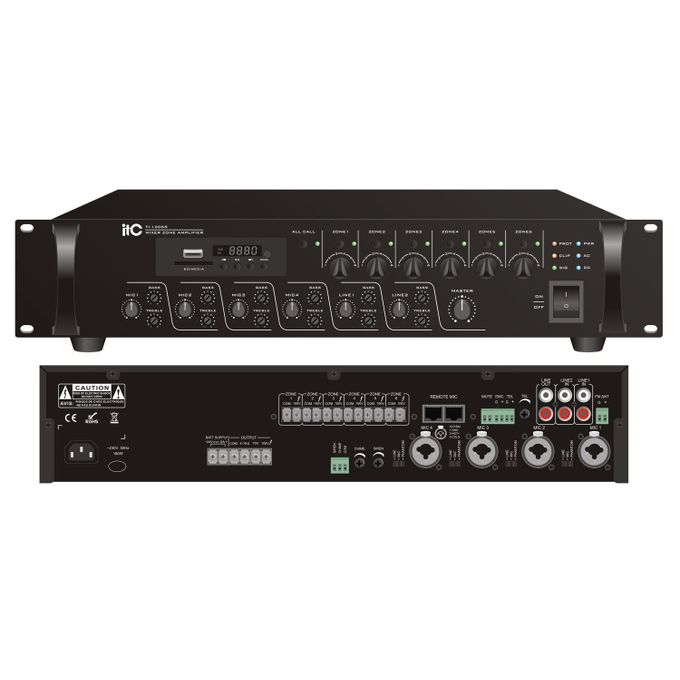

Digital mixer amplifier with Mp3/TUNER/Bluetooth.
Ideal for small & medium supermarkets, malls, and indoor places like cafe shop to play background musics.
