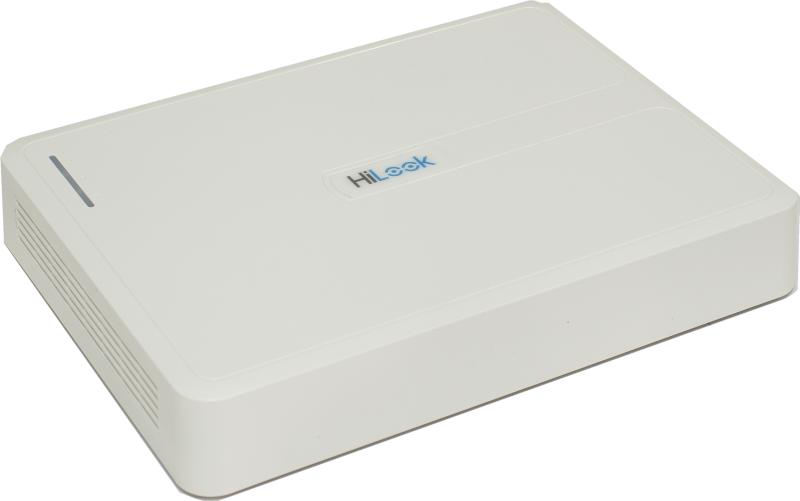

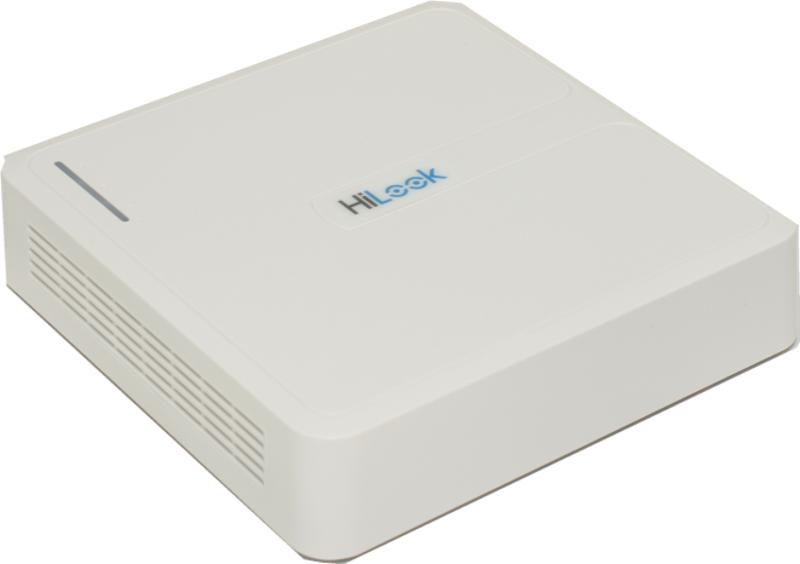

Hilook DVR-108G-M1 8-CH 1080p Lite Mini 1U H.265

Motion Detection 2.0

• Human/Vehicle Analysis
• Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
• Quick search by object or event type is supported.

Video and Audio

• IP Video Input
• 2-ch (up to 10-ch)
• Up to 5 MP resolution
• Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input
• 8-ch
• BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output
• 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input
• 1-ch RCA (2.0 Vp-p, 1 KΩ)
• 8-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way AudioReuse the first audio input
• Synchronous playback8-ch

Recording

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution
• For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
• For 720p stream access: 720p/WD1/4CIF/VGA/CIF
• For SD stream access: WD1/4CIF/VGA/CIF
• Frame Rate
• Main stream:
• For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
• For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
• For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
• Sub-stream:
• For 1080p and 720p stream access CIF/QVGA@15 fps
• For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
• Video Bitrate32 Kbps to 4 Mbps
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

Network

• Total Bandwidth72 Mbps
• Remote Connection64
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA1 SATA interface
• CapacityUp to 4 TB capacity for each disk
• USB InterfaceRear panel: 2 × USB 2.0
• Alarm In/OutN/A

General

• Power Supply12 VDC, 1.5 A
• Consumption≤ 17 W (without HDD)
• Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
• Weight≤ 1 kg (without HDD, 2.2 lb.)
